Canyon's 800 Series Digital Audio Controllers work with Canyon's 700 Series Digital Audio Control Amplifier.

The primary function is to provide microphone audio switching and keying operations for radio transmitters, receivers, and passenger address amplifier control

Model 803

  1. Inputs: Boom MIC, Oxy MIC, Hand MIC
  2. Outputs: Six Outputs for TX MIC
  3. Power: 28V, 0.3 Amp max
  4. Lighting: 5V, 1.5 Amp max
  5. Weight: 2.4 lb / 1.09 kg
  6. Dimensions: 5.75″W x 4.12″H x 6″L (146.05mm x 104.65mm x 152.4mm)
  7. TSO C50c Compliance: DO-160C, DO-178A Level 2

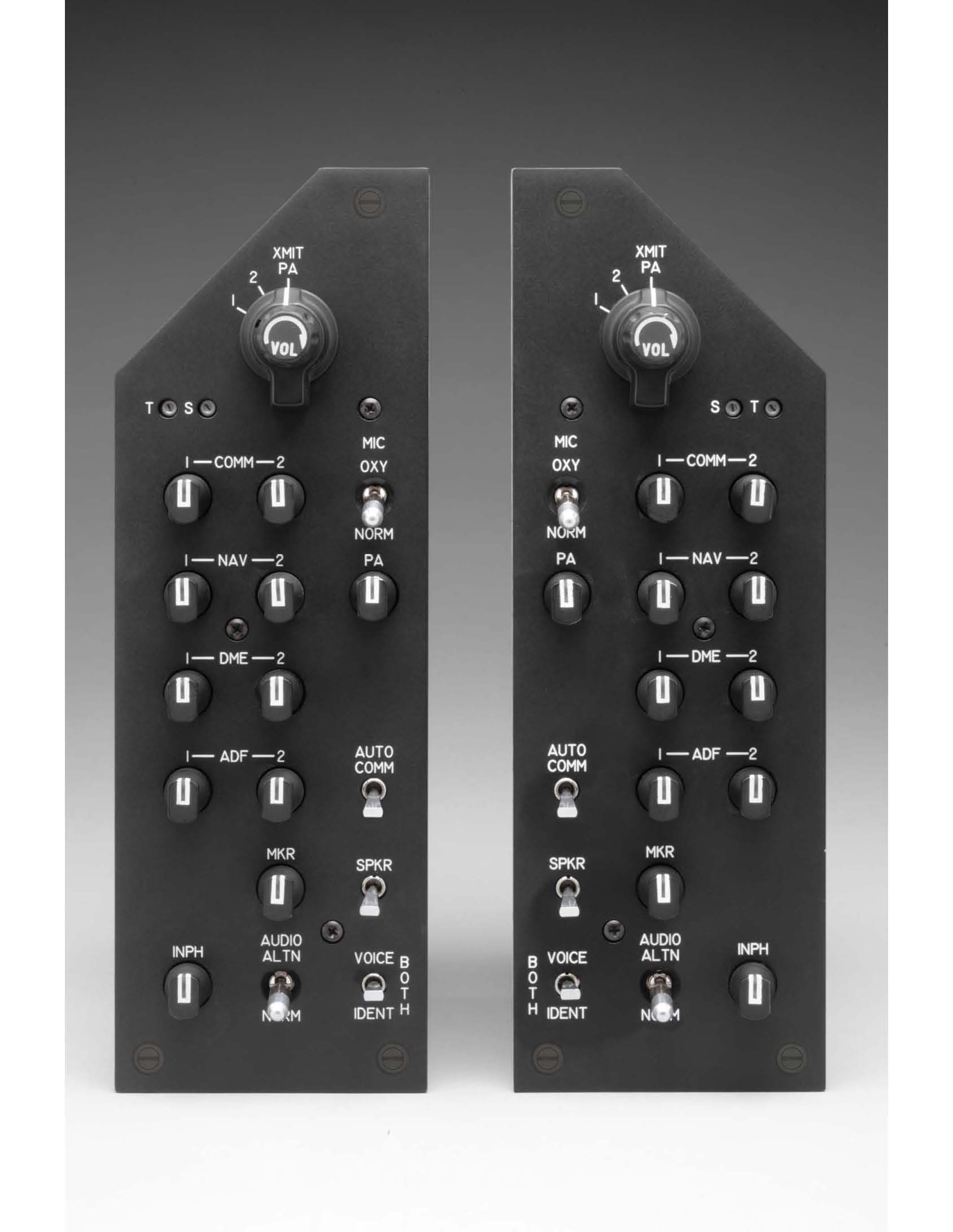

Model 804/805

  1. Inputs: Boom MIC, Oxy MIC, Hand MIC
  2. Outputs: Six Outputs for TX MIC
  3. Power: 28V, 0.3 Amp max
  4. Lighting: 28V, 1 Amp max
  5. Weight: 2.4 lb / 1.09 kg
  6. Dimensions: 3.2″W x 9.45″H x 4.58″L (81.28mm x 240.03mm x 116.33mm)
  7. TSO C50c Compliance: DO-160C, DO-178A Level 2
police-4304843

Key Features

  • 16-number storage
  • Parallel handset operation
  • Field-adaptable settings: mic, sidetone, DTMF, ringer output levels
  • Backlighting adjustable
  • Interfaces with Globalstar, Iridium and Inmarsat
  • Interfaces with airborne cellular systems
